Hektor Brilliant Edition Fan Module
Hektor Brilliant Edition Fan Module
Top features
Practically invisible: fan module with safety glass underside for rimless installation in the kitchen unit
Power pack: powerful 200 watts for 506 m³ / h max. exhaust air capacity
Convenient and intuitive: easy control via LED touch panel with display
Product description
The best air in your kitchen: the Klarstein Hektor Brilliant Edition fan module doesn't need to hide, but it does it for the sake of your kitchen unit and disappears into the kitchen slopes without edges. From there, it sweeps away steam and haze that arise while you are cooking.
The Klarstein Hektor Brilliant Edition fan module provides 200 watts of motor power in exhaust air mode for haze-free air in your kitchen. It is radiantly bright above your hob thanks to the integrated LED panel, which optimally illuminates pots and pans with a light temperature of 6500 Kelvin. With the three power levels and up to 506 m³ / h exhaust air output, the right wind always blows through your kitchen for the respective cooking volume. With its dimensions of 52 x 32 cm (WxD), the special feature of the Hektor Brilliant Edition fan module is its ability to become as good as invisible in your kitchen unit. Unlike most built-in hoods, it disappears rimlessly in the kitchen cupboard above the stove and only shows itself with its elegant underside made of safety glass. This is where the uncomplicated touch control panel is also hidden, with which ventilation, lighting and the timer function are controlled. The switch-off timer ventilates for 1 to 9 minutes if required and then switches the device off automatically. The built-in grease filter can be easily removed and is easy to clean with water and a little washing-up liquid.
Inconspicuous powerhouse: the Klarstein Hektor Brilliant Edition fan module makes itself almost invisible despite its high performance, so that nothing disturbs the impression of your kitchen unit.
The fan module can be converted to circulating air operation with the help of an activated carbon filter.
Please note that the hood is supplied without an exhaust hose.
Features

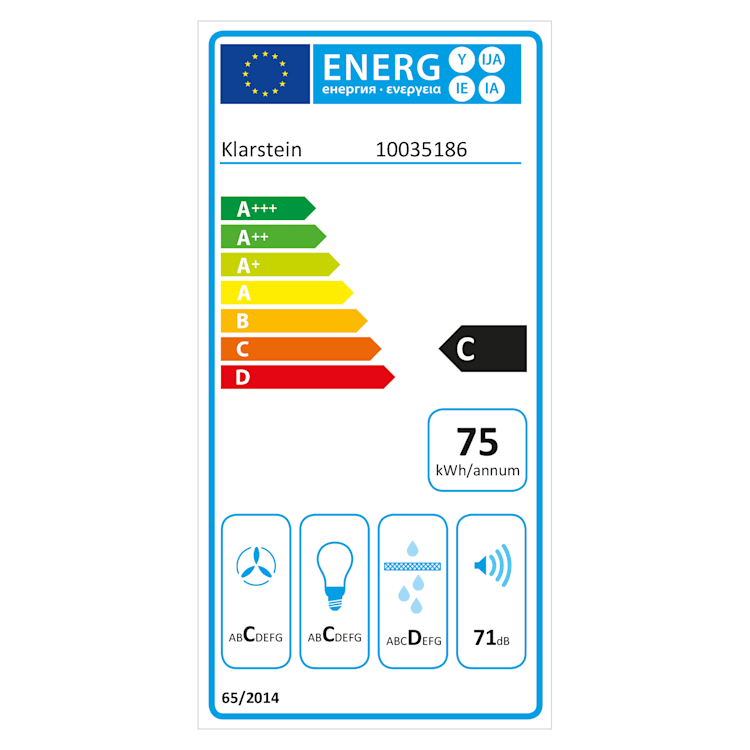

- Energy efficiency class: C
- Maximum exhaust air output up to 506 m³ / h
- Fluid dynamic efficiency class: C
- Grease separation class: D
- Sound power level: 71 dB
- Aluminium grease filter
- Delivery without exhaust air hose - diameter of the exhaust air opening 15 cm
- All-round fastening edge for screwing to cabinet parts of 3.5 cm
- Power supply: 220-240 V ~ | 50/60 Hz

Dimensions and Technical Details
- Dimensions: approx. 52 x 32 x 29.5 cm (WxHxD)
- Length of power cable: approx. 155 cm
- Weight: approx. 9 kg
- Installation height (above hob): 65 - 75 cm
- Dimensions recess: 50 x 27.5 cm (WxD)
What will be delivered
- 1 x fan module
- 1 x aluminium grease filter (pre-installed)
- 2 x non-return valve (pre-installed)
- Multilingual instruction manual
Delivery & shipment
Ready for shipping Delivery time: 3 - 5 workdays
